Side Mount Bracket

[Collector Inspector]

Just a stab in the dark with this request aye.

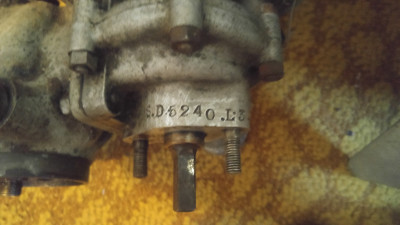

The motor is complete and nice, recently imported down-under.......Mission.

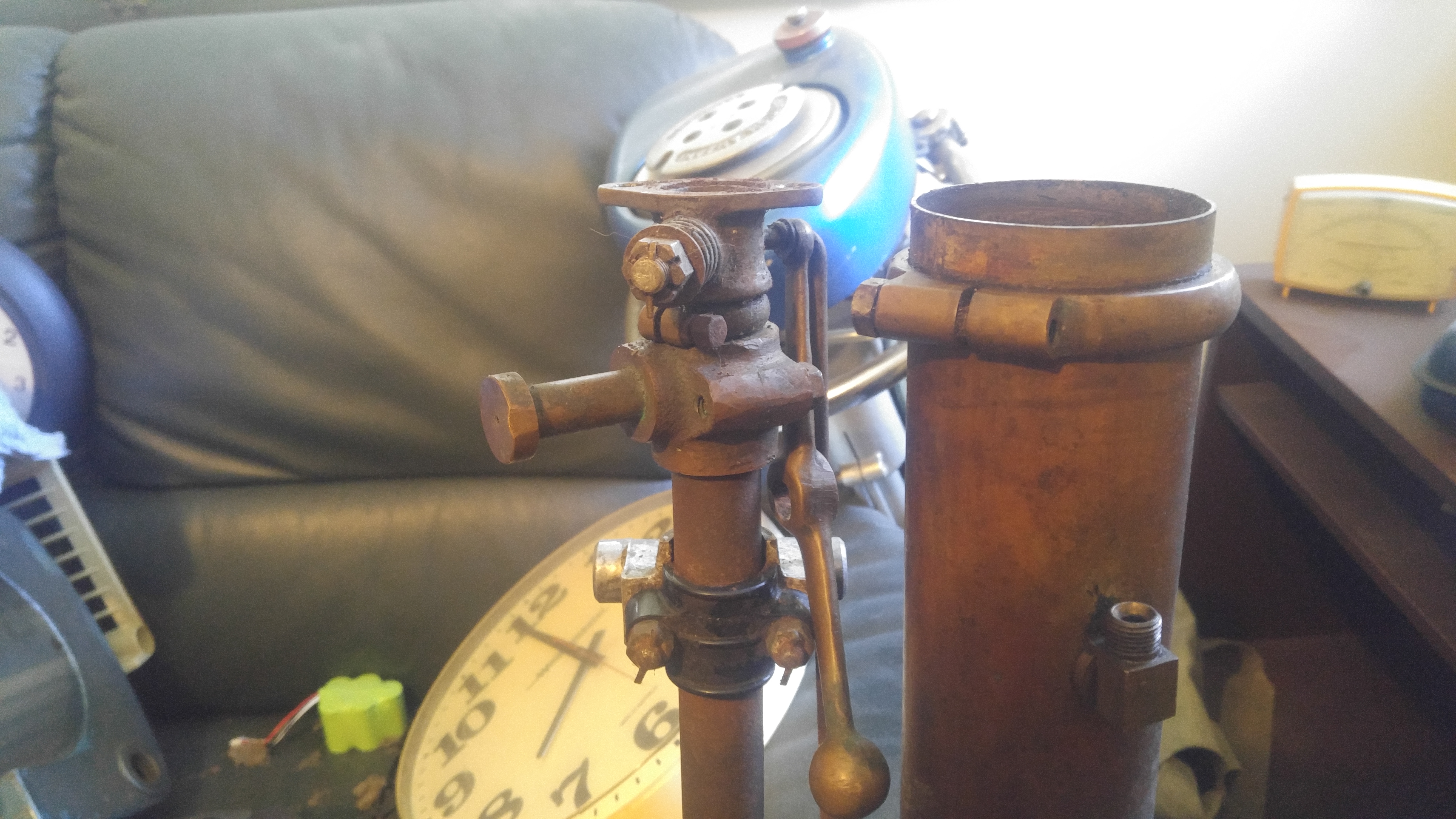

Side mount bracket wanted as per the pics.

Hope so

Regards

B

[Charles uk]

Standard Wartime bracket part Bruce, ask Hugo he will have all the pictures of the bracket& there might be some on here.

[Collector Inspector]

Thank you Charles and yes that is what needed.....and waiting with bait on my breath.....so to speak.

B

[Oyster 49]

Here you go Bruce, Hugo has got one of those brackets if I recall.

[Charles uk]

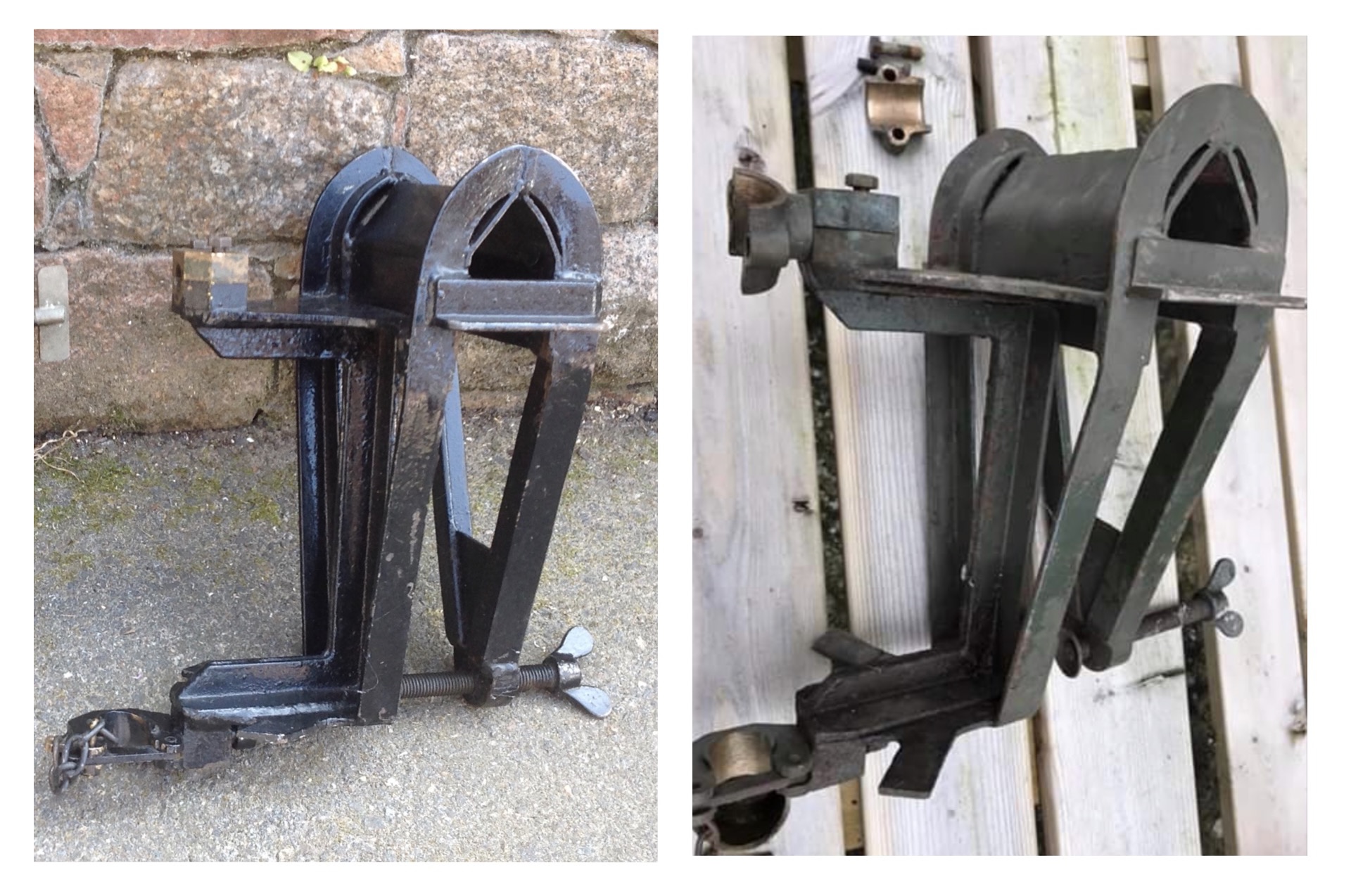

The lower picture has the correct thrust block but bracket has been cut and welded right at the top, to fit a much thinner hull, possibly on a transom.

Whereas the top picture has had a top support fitted in place as a thrust block, & some weird device attached to the top support, so no ability to tilt, don't hit anything underwater!

[Horsley-Anarak]


[JERSEYMAN]

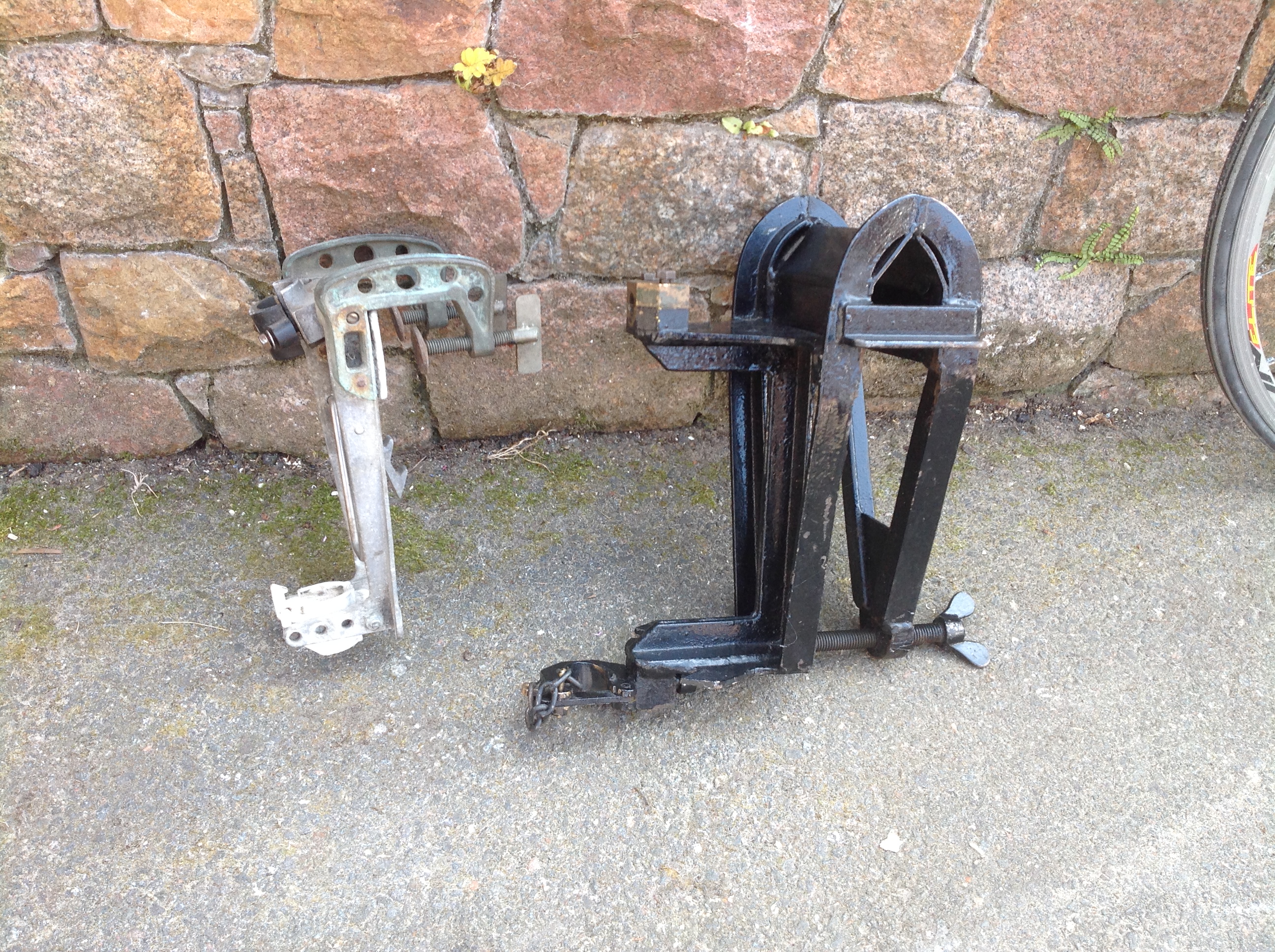

The black one I got, I always thought it had been modified by the owner to fit a transom until I cam across another identical bracket which indicates either they were made like that as I’ve never seen a wider version or several were modified together.

[JERSEYMAN]

On closer inspection I think they were possibly manufactured like that as the piece were the arrow is pointing is a shaped one piece of metal forming an integral part of the bracket, if the bracket had been narrowed there would be a weld where the bracket had been cut.

[Charles uk]

Rene can you attach it onto a drive shaft tube & take a picture, from these pictures the top & bottom fitting don't look to line up.

[Collector Inspector]

All very good and does someone want to sell me one?

B

[Oyster 49]

Only a few known. I recall Hugo bought one a few years back?

[Charles uk]

I've seen 3 & I believe there were a total of 5 that were known about, a couple of years ago!

[Collector Inspector]

I have enjoyed everything above.

For some reason I ask for old things that are not really available.....trending with that aye.

I will make do with a conventional bronze transom mount (period correct) from what I have.

Thanks to everyone for the added info of course.

I will post the Old Dear in one clean assembly soon.

B
