Thanks I haven't measured the voltage output or the plug gap and max gap. I don't think it will be as high as the original coil due to not getting the 100:1 winding ratio, but it's enough to spark. The plug that's in it was the same one from before it was repaired, cleaned in vinegar.

Apparently 0.15mm is 38swg yes. The original was a bit thinner (in the region of 0.08mm) but I couldn't find any wire that thickness for cheap - It would have been better to use thinner wire to get more windings and a higher voltage, but I was on a budget The thicker wire might help the coil last longer too, although that was not my intent.

No paper layers, but I used the kapton tape as a substitute so it wouldn't go bad like the old coil did. There was a layer of kapton between each layer of secondary winding, and there were 9122 (give or take a few) secondary turns in total. I had started to taper the secondary layers but once I realised I needed more space I made them a bit wider. The first few were not very good either as I was getting used to the winding technique.

A most impressive piece of work. Congratulations on achieving a working coil.

Would you have any desire to rewind a M1634E coil from an early 40 series Villiers magneto?
This was the coil spec about which I raised this topic, and which l believe that there is a demand for if we are to keep these early 40s being used out on the water.
Would you like a sample of a failed M1634E to examine for possible rewinding?

Great stuff.

Jeremy

That’s a great bit of work, great stuff. I’ve been collecting unserviceable old coils, I think I’ve got 3 seagull ones and another twin output BMB one also.

Great bit of DIY this. (and to a budget as well, that's impressive)
Just what this forum needs.

There must be thousands of dead villiers coils all over the place, with more dying every year and this could very well be a good alternative to what some have done already.

I think there's a few members on here that could direct a few duff ignition units your way if you feel the need for a bit more practice
Nice work, i like it a lot.

Your pic by the way is of a 1930's/40's magneto, what some of us refer to as a "coolie hat".


Jon

Would you have any desire to rewind a M1634E coil from an early 40 series Villiers magneto?

Unfortunately I'm moving house tomorrow to start my first job since graduating, which means I'll be losing access to most of my tools and lathe (and most of my free time ) Until I can build up my own workshop space and equipment I won't be able to do another project like this. Besides, getting a professional coil-winder to do it would probably be cheaper as they have all the right tools and things on hand.

To illustrate the effort required to rewind a coil, could you tell us how much time you spent on the task of rewinding.

This post started with me considering what alternatives there are to replacing a failed Villiers M1634E coil as used on the early series 40 and many others. I have purchased a much cheaper (and 0.5" shorter) coil and fitted it to FV5141. Over the last couple of months, I have started and ran it in the tub, where it started and ran very well. Yesterday, I took it to the Yealm estuary in South Devon, UK and gave it a longer run.
As expected it started and ran well. It was a good opportunity during this wet and windy winter, to get out on the water with FV5141 in weather which was quite pleasant:- Anyway, it is up each person as to how to resolve a the problem of a failed Villiers coil. I am happy with what I have done with FV5141 and I expect it will give me the reliability that I require.

Jeremy

Cannot work out why the photo has not been loaded, so here goes again:-

For the last couple of weeks I have been on the water in South Devon with FV5141 which has been fitted with the cheaper and smaller M1361 coil. Charles L suggests that it needs a total running of 24 hours before it can be regarded as a 'good' replacement. Quite a lot of running in a small tender/dinghy!
I have confidence in it. It starts first pull 95% of the time. I am using an old 8 COM plug. However total running to date is about 5 hours. Another 19 hours to go! As I will be using my other FVs on my dinghy, it is going to take probably another 5 or 10 years before the 24 hours is achieved.
I think that I am not going to try to achieve the 24 hours. I am happy as it is. I will leave it to the individual to decide what to do when a Villiers coil fails in a 40 Series. The choices have been discussed in this topic.

Jeremy

Good to see the fix is working well

Although l have said that l am not trying to achieve the 24 hours running time with the M1361 coil. I have actually over the last few days on the Yealm estuary clocked up another 2 hours, making a grand total of 7 hours!

FV5141 is a great little motor. I am convinced that the key to get good, satisfactory performance out of the FV/FVPs is to ensure that there is good compression. I initially assess this my measuring the clearance between the top of the piston and the combustion chamber. Figures of around 4 to 5mm seem to me to be about what is required. Some of the engines that l have worked on have been up to 9mm!


Jeremy

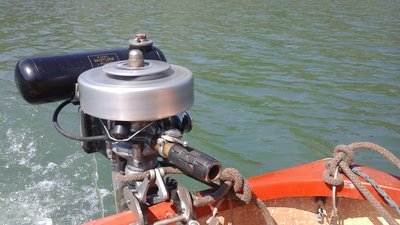

FV5141 with its M1361 coil is still going strong. Here is a photo of it doing what it was designed for - pushing a dinghy along. This was last week on the Yealm estuary in South Devon, UK. I know Charles L. wanted to see how this coil stood up to 24 hours use. Well, the total now is about 9 hours - so some way to go! Starting, using an old 8 COM is 95% first pull.

Just a reminder that the M1361 coil for the Villiers magneto is about £25 in lieu of the £65 for the correct M1643E coil.

Putting financial considerations to one side, I would recommend the £65 M1643E, but in real life ……….


Jeremy

I see the Green Spark Plug Co have M1361 coils @ 22.50 inc vat - so if buying plugs or ht lead etc - I may well add one to the basket.
Be nice to breathe some life into the very large pile of villiers ignitions I have - rather than stick on a wipac since its the only working coils I have !
