EFNR564FF9 Gearbox Pinion Gear Removal

Post by daydreamingdave » Mon Apr 22, 2019 8:49 pm

Help please!
How do I remove this drive pinion?
I have removed the thick washer and oil seal from the top.
I have removed the locating screw from the leg.
I have heated it up and I have bashed the pinion up the leg, which I am sure is the correct direction.
Nothing is moving.

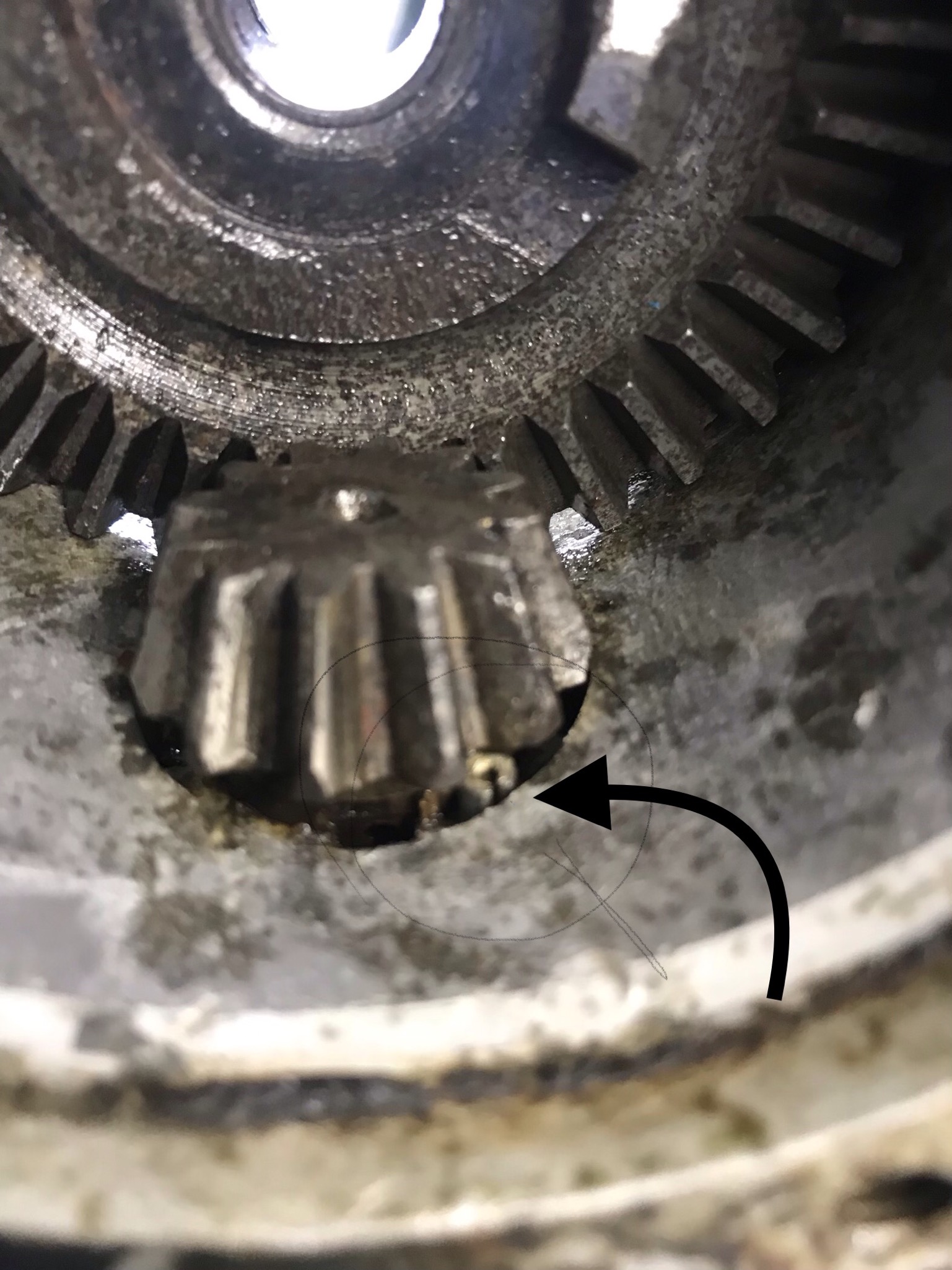

The arrow in the pic is to a very small pin. Am I missing something with this? Is there something else to do to dismantle the box completely?
It has sat with water in the box and the gears are rusty. I don’t want to reassemble it without a proper clean.
Thank you and Happy Easter!
You do not have the required permissions to view the files attached to this post.

User avatar
Charles uk
Posts: 4699
Joined: Wed Feb 27, 2008 4:38 pm
Location: Maidenhead Berks UK

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by Charles uk » Tue Apr 23, 2019 12:22 am

Do you have a parts book?

If your answers yes, look at the parts drawing, the bit you've heated to red hot, is the stainless steel bevel pinion drive sleeve which is screwed on to the end of the bevel pinion, the last thing you really want to do is get the bevel pinion red hot it will destroy it's hardening & possibly melt the bronze bushes inside the pinion bearing sleeve.

The pin you ask about is a roll pin that is there to disrupt the oil that is spinning around with the pinion gear.

It's going to have to come apart now, to see if you've done any damage.
Make it idiot proof and someone will make a better idiot.

thcl500j6
Posts: 23
Joined: Mon Jul 17, 2017 12:48 pm
Location: Brisbane QLD

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by thcl500j6 » Tue Apr 23, 2019 10:24 am

This might Help
seagul051 ENFR Box.jpg
You do not have the required permissions to view the files attached to this post.
TC - 1960 LLS - 1961 LLS - 1966 THCL - 1968 THCL EFNRL - 1986

User avatar
NaughtyBits
Posts: 205
Joined: Fri Apr 17, 2015 6:30 pm
Location: Bermuda

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by NaughtyBits » Tue Apr 23, 2019 4:56 pm

Sometimes a few sharp smacks on the casing around the pinion bushing with a hard mallet is enough to make driving out the pinion gear & bushing easier - though I haven't found that to be the norm for my motors.

I usually end up heating the ali casing enough so that with a few light taps (with a hammer & a long brass/bronze driving rod against the gear) the pinion gear & bushing easily slide out. Same (re: heating up the casing) to install.

If you have damaged the pinion bushing - a word of warning before purchasing a new one from Sheridan - make sure to ask that it's been reamed. I purchased one a while ago from them that had never been reamed.

Good luck.

User avatar
fleetingcontact
Posts: 274
Joined: Sat Aug 15, 2015 6:47 pm
Location:

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by fleetingcontact » Tue Apr 23, 2019 9:17 pm

Perhaps this will be of help.

[YouTube]https://www.youtube.com/watch?v=HQh7GZVrGjk[/YouTube]

daydreamingdave
Posts: 21
Joined: Tue May 29, 2018 10:33 pm
Location: Ireland

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by daydreamingdave » Tue Apr 23, 2019 11:05 pm

Thank you all for your input.

I have managed to remove the unit and sleeve. I have no idea if it is reusable, but i expect i will need a new one.

I will try and remove the sleeve etc, so thank you for the exploded diagram.

David
You do not have the required permissions to view the files attached to this post.

User avatar
fleetingcontact
Posts: 274
Joined: Sat Aug 15, 2015 6:47 pm
Location:

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by fleetingcontact » Wed Apr 24, 2019 5:57 pm

Good work. What was the method?

daydreamingdave
Posts: 21
Joined: Tue May 29, 2018 10:33 pm
Location: Ireland

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by daydreamingdave » Wed Apr 24, 2019 11:19 pm

Having removed the unit I feel I should strip it into its constituent parts.
However, I fear this may destroy it and, well, what’s the point.
I also feel it has probably been damaged in the process, so what is to lose?
Has anyone done this before? Any tips?

User avatar
Charles uk
Posts: 4699
Joined: Wed Feb 27, 2008 4:38 pm
Location: Maidenhead Berks UK

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by Charles uk » Sat Apr 27, 2019 3:40 pm

Why didn't you follow Naughty Bits methods of pinion assembly removal? with the sacrificial brass drift.

It looks from your pictures that you've destroyed the hardness of the bevel pinion gear, so you'll need a new one.

The bevel pinion sleeve with bushes looks B.E.R, so a new one of those.

If you look at the parts drawing you will see the bevel pinion drive sleeve is just screwed onto the end of the bevel pinion so unscrew that & it should fall apart.

It would be cheaper here in the UK to buy a complete good used lower unit than all the new parts required to rebuild your complete bevel pinion assembly sorry!
Make it idiot proof and someone will make a better idiot.

User avatar
Charles uk
Posts: 4699
Joined: Wed Feb 27, 2008 4:38 pm
Location: Maidenhead Berks UK

Re: EFNR564FF9 Gearbox Pinion Gear Removal

Post by Charles uk » Tue Apr 30, 2019 4:32 pm

What did you decide to do in the end Dave?
Make it idiot proof and someone will make a better idiot.
