Search found 261 matches

by Daryl
Thu May 28, 2020 11:45 am
Forum: Other Old Outboards (Non-Seagulls)
Topic: Outboard With Villiers engine
Replies: 4
Views: 1874

Re: Outboard With Villiers engine

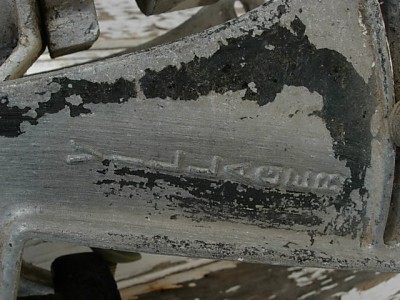

Villager.
by Daryl
Thu May 28, 2020 10:03 am
Forum: Other Old Outboards (Non-Seagulls)
Topic: Outboard With Villiers engine
Replies: 4
Views: 1874

Outboard With Villiers engine

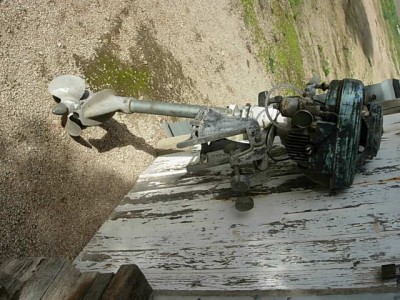

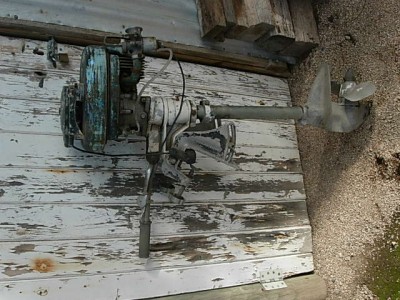

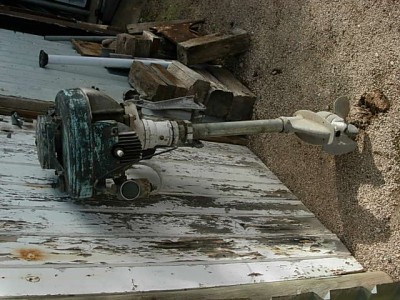

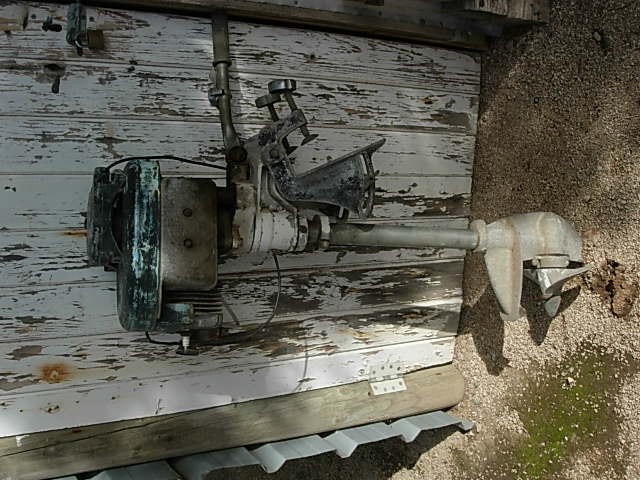

Found this in the local scrap yard. The Villiers motor was built in Ballarat Victoria. It turns over freely & I will dismantle it & clean up & hopefully will go again. Does any one know anything about this outboard?
by Daryl
Fri Aug 04, 2017 6:25 am
Forum: General Topics
Topic: chinese manufacturing
Replies: 13
Views: 8668

Re: chinese manufacturing

Speaking of Chinese outboards, my daughter purchased a Parsun Chinese outboard, they are water cooled & worked ok for a bout 12months regular work in & out to a Yacht, then sold it The main problem was it did not like running for very long over 3/4 throttle it would just stop & was then hard to star...
by Daryl
Sat Nov 07, 2015 3:06 am
Forum: Help
Topic: CDI ignitions
Replies: 8
Views: 7340

Re: CDI ignitions

An SCR / Thyristor is a Silicon Controled Rectifier or a switching device, which is used in the circuit of a CDI ignition system.
by Daryl
Mon Oct 05, 2015 4:42 am
Forum: Help
Topic: CDI ignitions
Replies: 8
Views: 7340

Re: CDI ignitions

Generaly in my experience of Johnson/Evinrude the SCR in the CDI unit is what fails.
by Daryl
Fri Jan 23, 2015 1:22 am
Forum: Help
Topic: IGN Module
Replies: 78
Views: 57880

Re: IGN Module

Interesting that none of the pictures in this thread are viewable any more. The pictures of the module & modified circuit, are on photo bucket debe5.
by Daryl
Wed Oct 01, 2014 3:54 am
Forum: Help
Topic: IGN Module
Replies: 78
Views: 57880

Re: IGN Module

ATOM copy on VICTA.JPG ATOM MOD.10.JPG ATOM MOD.9.JPG ATOM MOD red circ.jpg After more testing found this transistor will shutdown then will restart. The problem appears to the large HV spike across the transistor. The solution appears to be fit a 1.5KE200A (1N6303A) Transorb . This seems to fix th...
by Daryl
Mon Sep 08, 2014 12:59 pm
Forum: Help
Topic: 1960-61 Forty Plus No spark alternatives?
Replies: 7
Views: 5885

Re: 1960-61 Forty Plus No spark alternatives?

If they are only 2 pin then they should work.
by Daryl
Fri Sep 05, 2014 6:30 am
Forum: Help
Topic: 1960-61 Forty Plus No spark alternatives?
Replies: 7
Views: 5885

Re: 1960-61 Forty Plus No spark alternatives?

PEAK VOLT ADAPT.JPG
Use this circuit to measure the voltage from the coil primary, you should get about 5-6Vdc when spining the flywheel. Its fairly rare for the primary windings to fail. The Mazda tribute coil. Has it got 2 or 3 pins on the conector? if its got 3 then its not suitable.
by Daryl
Thu Sep 04, 2014 11:21 am
Forum: Other Old Outboards (Non-Seagulls)
Topic: Old outboard from scrap yard
Replies: 7
Views: 6370

Re: Old outboard from scrap yard

BITSA OB.1.JPG
This thing goes great clocked it on the 10Ft tinny using a GPS at 8Knots & up & planning, realy happy with it.
by Daryl
Thu Sep 04, 2014 10:59 am
Forum: Help
Topic: IGN Module
Replies: 78
Views: 57880

Re: IGN Module

ATOM MOD.6.JPG ATOM MOD.7.JPG ATOM MOD.8.JPG More construction. Due to diferent pulse polarity betwean Villiers & Wipac coils they are wired differently. Using the colour of the wires in the assembled picture. The Wipac is wired Black to ground & Red to the coil. Villiers is Black to coil & Red to ...
by Daryl
Thu Sep 04, 2014 10:53 am
Forum: Help
Topic: IGN Module
Replies: 78
Views: 57880

Re: IGN Module

ATOM MOD.1.JPG
ATOM MOD.2.JPG
ATOM MOD.3.JPG
ATOM MOD.4.JPG
ATOM MOD.5.JPG
Construction.
by Daryl
Thu Sep 04, 2014 10:44 am
Forum: Help
Topic: IGN Module
Replies: 78
Views: 57880

Re: IGN Module

ATOM IGN MODULE improved.2.JPG Had a bit of a break through with finding a suitable switching transistor for this unit. I discovered 2SD1071 transistors were used in a Kawasaki motorbike ign system. It has a rating of 450V & works well in the circuit with Wipac & Villiers coils. The 2SD1071 transis...
by Daryl
Thu Sep 04, 2014 10:21 am
Forum: Help
Topic: 1960-61 Forty Plus No spark alternatives?
Replies: 7
Views: 5885

Re: 1960-61 Forty Plus No spark alternatives?

SEAGULL COIL.2.JPG
SEAGULL COIL.JPG
I have tried a COP of a BA ford falcon just to see if it would work. It did run but mever tried it out on the back of the boat.
by Daryl
Sun Feb 16, 2014 12:50 pm
Forum: General Topics
Topic: what to do with old fuel
Replies: 10
Views: 6888

Re: what to do with old fuel

I thaught in the old days before WD40, you used a rag soaked in the old fuel & wiped down the Seagull to leave a protective oily film.
